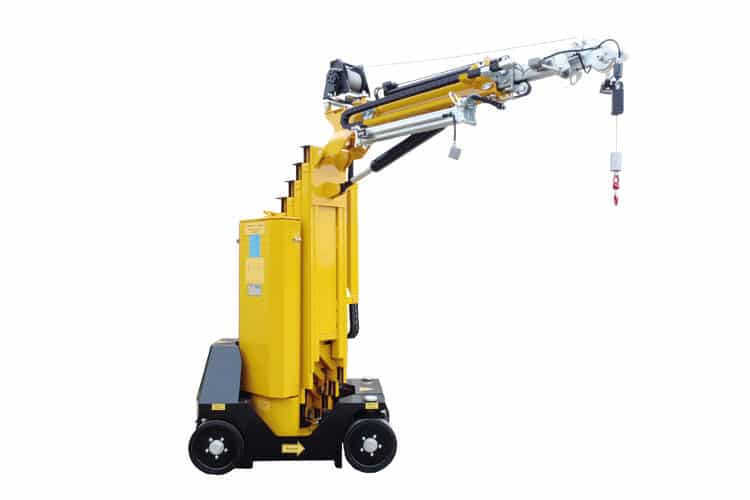

IMK35500Mini Crane
The IMK35500 Mini Crane is fully electrically powered and ideal for operations in narrow spaces and factory halls. With a maximum lifting height of 10.5 meters and a lifting capacity of 500 kg, this mini crane is extremely flexible in use.
Dimensions (h×w×l)2.37 x 0.98 x 2.98 m
Weight4,800 kg
Lifting capacity500 kg
Horizontal reach5.10 m
Max. lifting height10.50 mPricing
With operator
Without operator
Downloads
WIDE RANGE
TOP BRANDS
GOOD SERVICE
Extremely Maneuverable

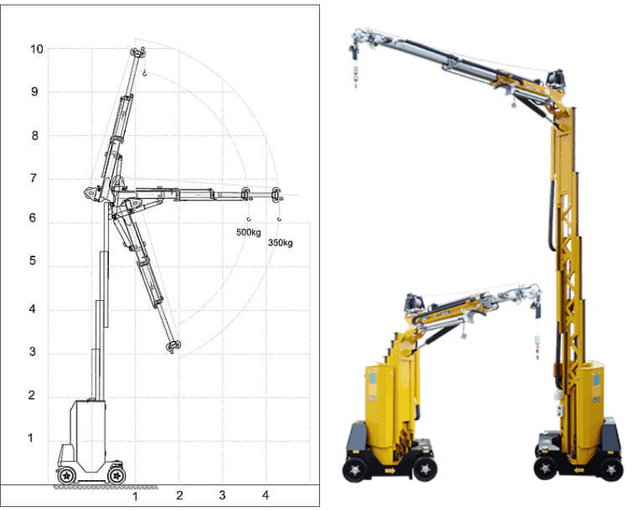

The IMK35500 Mini Crane can access very narrow areas to perform various assembly and disassembly tasks. With a passage width of 0.98 m and the ability to rotate without any overhanging ballast, the crane offers unique maneuvering possibilities, including a steering angle of 86°. The maximum lateral reach is 4.30 m and the knuckle point height is approximately 7 m.

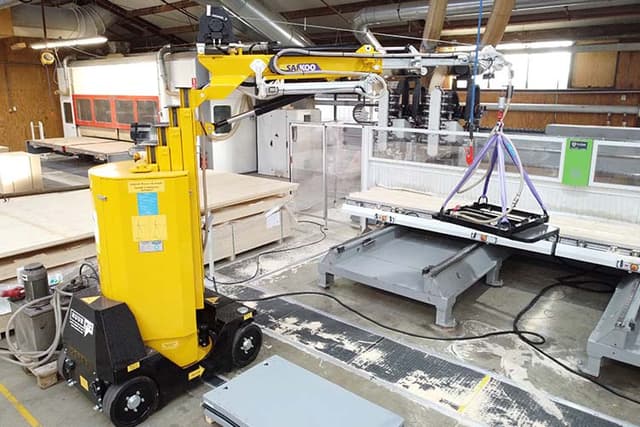

Fully Electric for Indoor Use
The IMK35500 Mini Crane is perfect for working in factory halls, as it operates entirely electrically. There are no emissions or noise pollution, making it the best choice for industrial environments where space is limited. The IMK35500 is an ideal alternative to overhead cranes.
